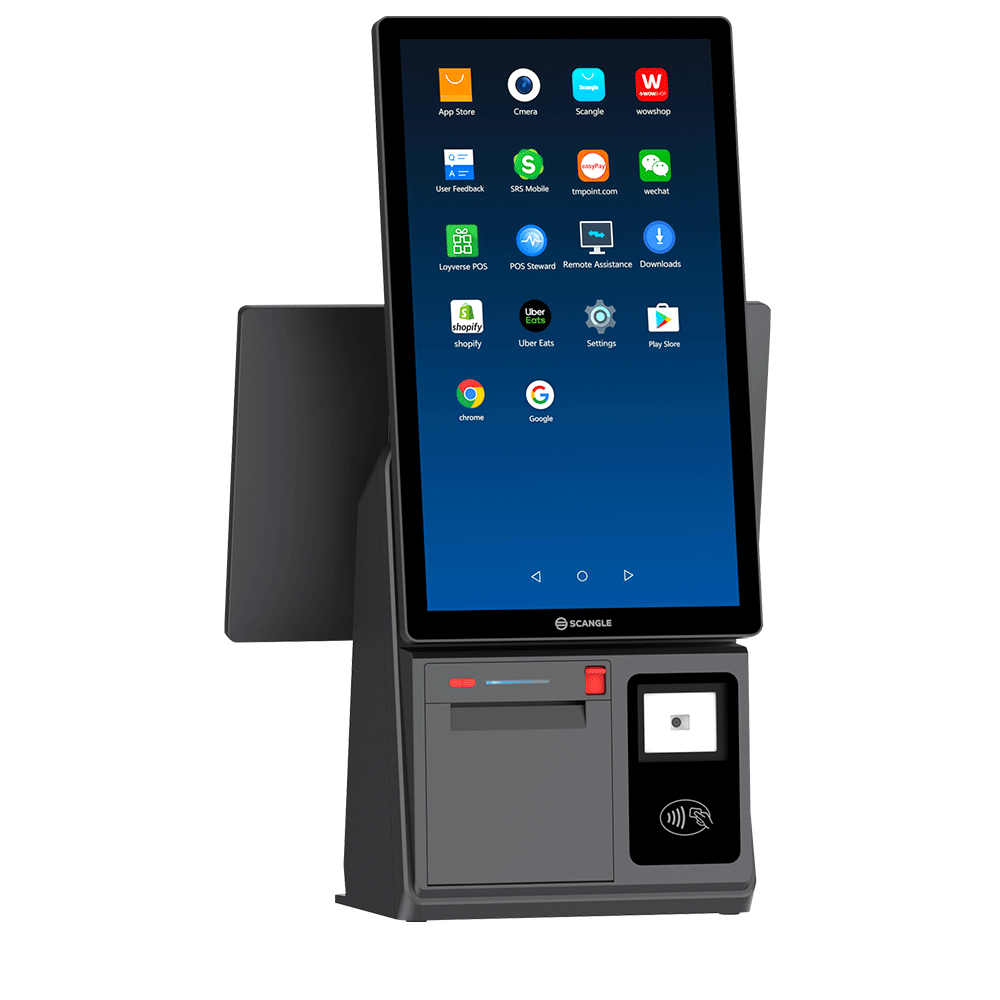

dual screen touch POS terminal k5 kiosk
● High-end touch screen technology, surface main display 15.6 inch, 10-point touch;
● Capacitance 10-point touch screen, clear picture, solid screen surface;
● All in one pos system machine supports Windows 10pro /IOT, /Android 11 ,13,14 OS / Linux operating system;
● The power on button is handy, the interface is easy to plug and unplug without affecting the appearance;
● Compact size, compact structure, saving space,
● Main Display (15.6"- FHD 1920*1080P )
● Customer display (15.6"/14.1 or VFD ) for optional.
● Inbuilt 80mm Thermal printer support OPOS driver ESC/POS commands/Ubereat app, Paper size: 80*80mm or 58*80mm paper roll
● QR code reader/ Nfc reader for optional
Sistema POS Kassensystem POS სისტემა מערכת קופה Système de point de vente POS sistema Hệ thống POS
Scangle POS K5 15.6 inch Kassensystem Touch POS System / all in one pos system machine is designed in compact size with customer display screen,which provides customers with touch payment service,and this sort of touchscreen pos terminal with customer facing monitor is able to support various size 15.6" & 14.1" lcd screen according to growing business’s actual demands in supermarkets,bars,super mall,restaurants,retailers,clubs.
Scangle POS K5 Dual Touch Screen POS Terminal with 80mm Auto cutter thermal printer.
Scangle K5 POS Terminal with 15.6 inch wide screen (1920*1080 FHD )
Dual Touch screen available:
15.6"+15.6"
15.6"+14.1"
Optional: MSR/ Ibuttion reader
Inbuilt 80mm Autocutter Thermal Printer ( Paper roll support 58*80mm & 80*80mm ), Printing speed: 250mm/sec,
Printer interface port : ( USB/RS232/ bluetooth)
Support OPOS driver /ESC/POS commands
Windows version :
CPU: J4125, J6412, N100, i3, i5, i7
RAM: 4/8/16GB
Storage: Msata or M.2 SSD ( 64G /128G/ 256G /512G/ 1T )
OS: Windows 10 IOT or Pro / Linux OS
Android verson :
CPU: RK3566, RK3568,
RAM: 2G/4/8/GB
Storage: ( 16G /32G/ 64G /128G/ 1T )
OS: Android 11.0 /14

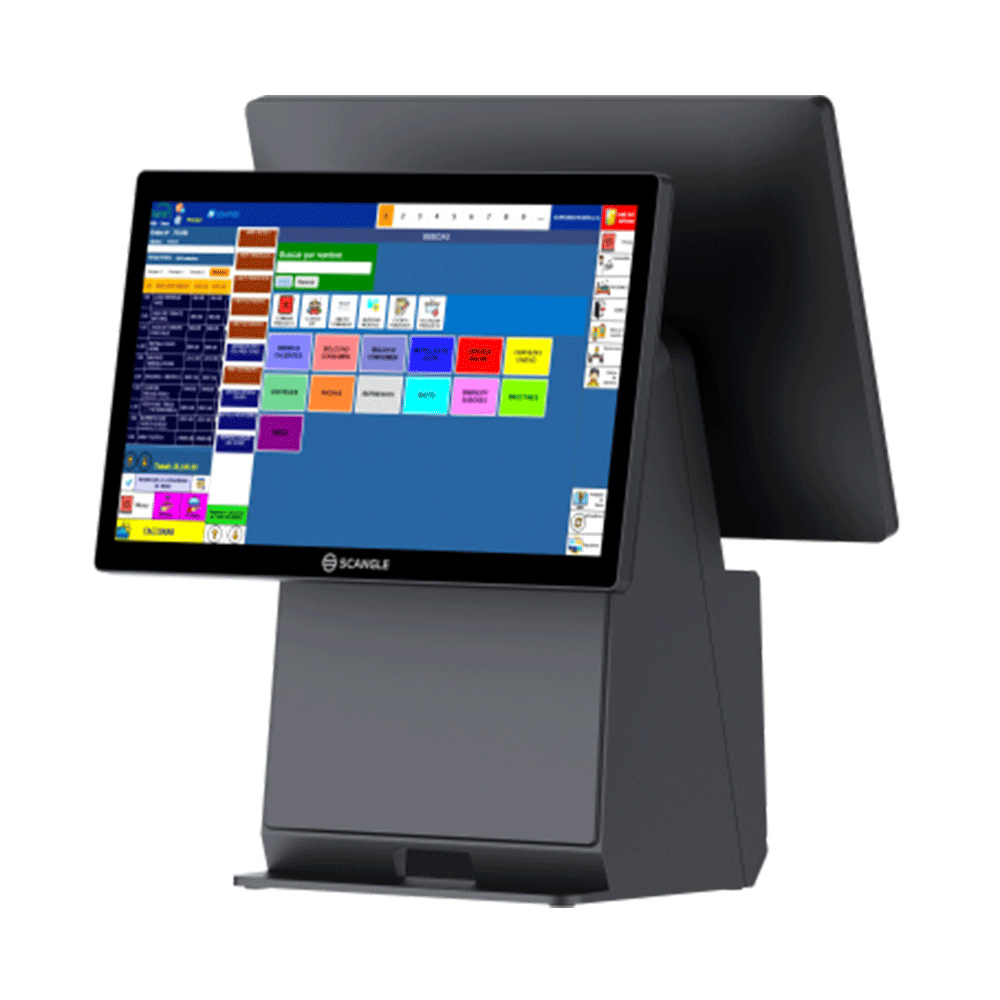

Scangle K5 POS terminal support dual touch.

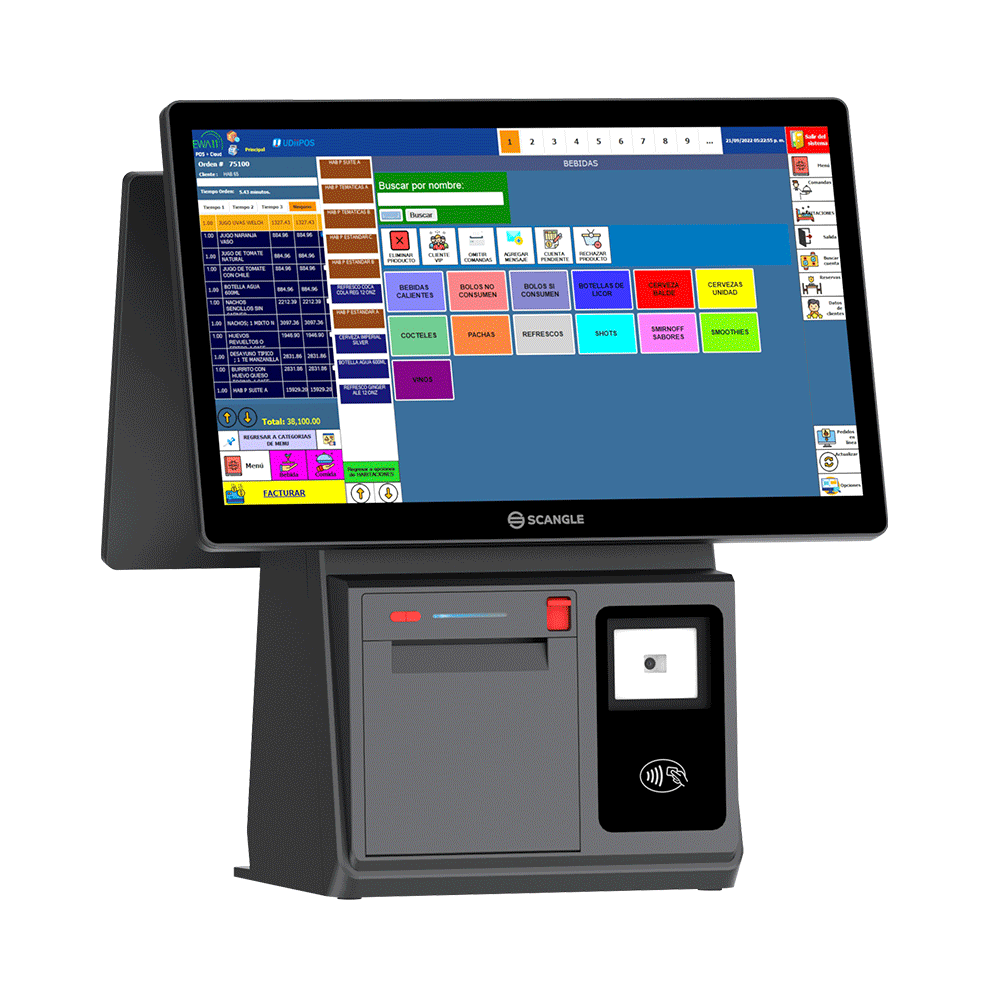

Scangle K5 POS system with 80mm thermal printer
| Main parameter | Windows | Android |
| Panel size | 15.6 inch | |
| Resolution | 1920*1080 or 1366*768 | |
| CPU | Intel J4125/J6412/i3/i5/i7 | RK3566/RK3568 |
| RAM | DDR4---4/8/16GB | DDR4--2/4/8GB |
| SSD | mSATA SSD 64GB / 128GB/256G/512G | 16/32/64/128GB |
| Printer | 80mm Thermal printer (USB/COM/Bluetooth ) support OPOS /ESC-POS commands | |
| GPU | Intel HD Graphics | |
| BIOS | BIOS AMI UEFI | |
| Communications | 1000 Mbps integrated Ethernet + Inbuilt M.2 wireless LAN | |
| Operating System | Windows IOT / windows 10 pro/ windows 11 | Android 11/13/14 |
| Touch | Multipoint capacitive touch | |
| Brightness | 300 NITS display | |
| Driver Support | SGT116 thermal printer driver | |
| Interface | 2*USB 3.0 port + 3*USB 2.0 port, | |
| 1*LAN port | 1 | |
| 1*COM port | 1 | |
| 1*VGA port | 1 | |
| 1*LINE-OUT port | 1 | |
| 1*RJ11 port for cash drawer | 1 | |
| 1*DC port | 1 | |
| WiFi | Optional | yes |
| Bluetooth | Optional | yes |
| Optional | NFC card reader | |
| QR barcode reader | optional | |
| Ports/Slots | LAN Port – 1(10/100/1000 M), Audio, input/output | |
| Power supply | DC 12V -7A power supply | |
| Operating Temperature | Operating: 0 to 50 degree C | |
| Dimensions (mm) | 290(L)*355(W)*189(H) | |
| Weight | 5 KG |
